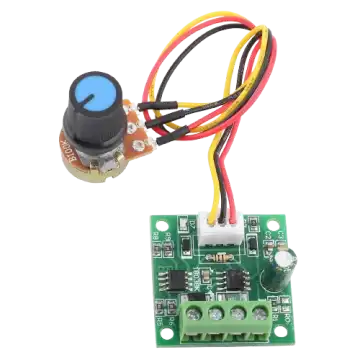

PWM DC Motor Speed Control Module 10A

PWM Control DC Motor Speed Regulation Module With High Efficiency 12V-40V 10A.

Features:

• 1. This is a simple and easy-to-use DC motor speed controller of stable performance.
• 2. Speed controller is made with high quality circuit board which ensures a longer service life.
• 3. Equipped with fuse tube to protect the speed controller from burning out that short circuit causes.
• 4. With reverse connection protection function.
• 5. Designed with convenient screw terminals for quick wiring.

Specification:

1. Input Voltage: DC 12V-40V
2. Control Power: 0.01-400W
3. Rated Current: 8A
4. Maximum Current: 10A
5. Static Current: 0.02A(standby status)
6. Frequency: 13kHz
7. Speed Adjustment Range: 10%-100%
8. Hole Diameter: 3.2mm
9. Operating Temperature: -20℃~125℃
10. Dimensions: 75*60*28mm / 2.95*2.36*1.10in
11. Package Weight: Approx. 73g/2.6oz

Package List:

• 1pc * PWM DC Motor Speed Control Module 10A
